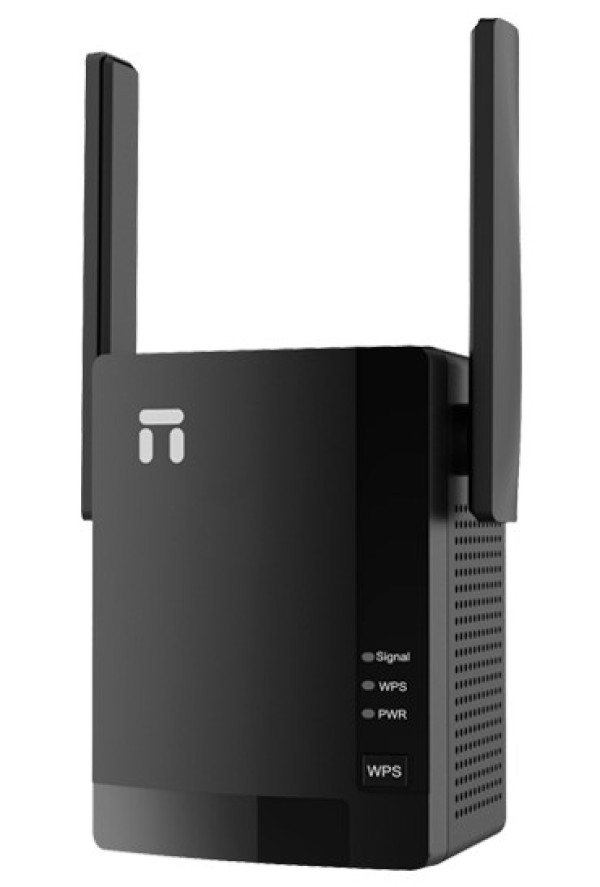

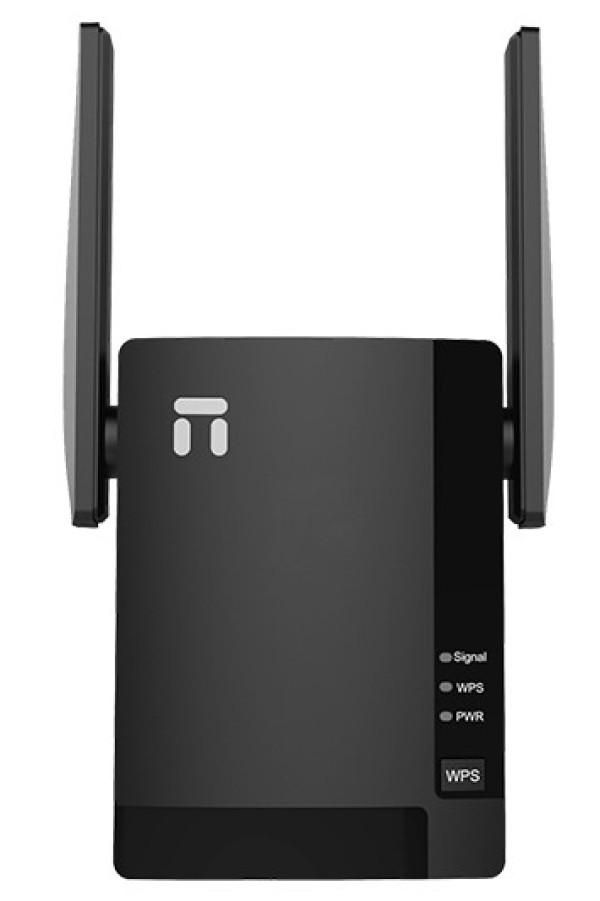

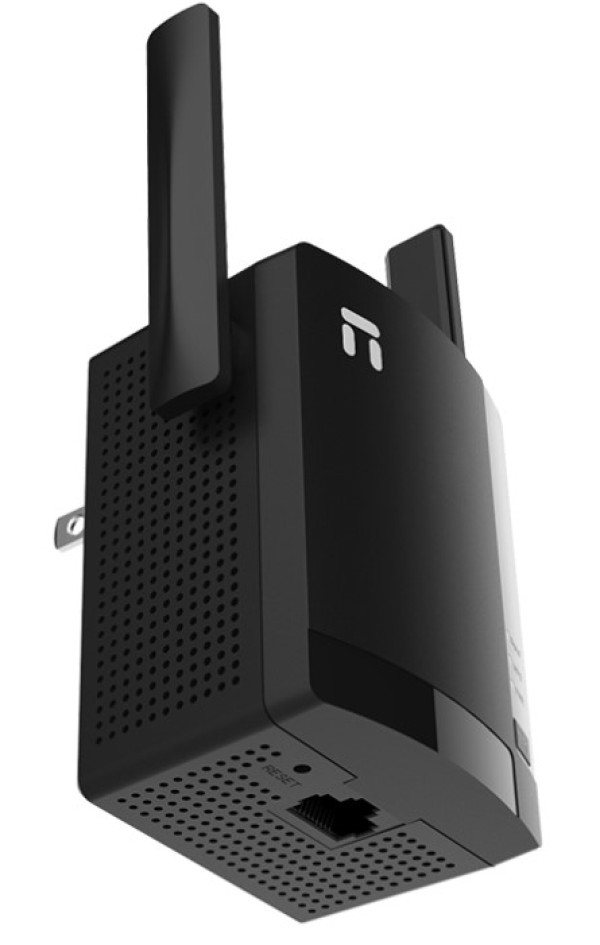

AC1200 Wireless Dual Band Range Extender
The Stonet AC1200 Wireless dual band range extender E3 is designed to establish a highly efficient mobile office or entertainment network with wider coverage. E3 works as a Range Extender in default, which will pick up the wireless signal from your main router and expand it to somewhere that your main router may not reach. With portable design, it’s a perfect choice for big house owners or anyone else for work or play.

-Excellent wireless AC with dual band speed of 1167Mbps
-Range Extender mode extending your existing wireless coverage to eliminate Wi-Fi
dead zones
-Smart Signal indicator helps to locate the range extender in a right place
-WPS button for quick extender setup to connect your main router within seconds
-Stylish portable design with built-in power adapter, ideal for travel and home use
-US, EU plugs available
-Intelligent bandwidth control to manage the bandwidth usage for each computer
reasonably
-Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
-Quick setup, with built-in multilingual management page

Wireless
Standards
IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz

Signal Rate
Up to 300Mbps 2.4GHz
Up to 300Mbps 5GHz
Frequency Range 2.4-2.4835GHz and 5.150~5.85GHz
Transmit Power 20dBm(MAX)
Data Transfer Rates
802.11n:
40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Modes AP, Repeater
Wireless Security Support 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES)

Hardware
Standards
IEEE 802.11b/g/n/ac
Interface 1* 10/100Mbps Ethernet port
2×2 11b/g/n/ac 2.4/5 GHz dual band
Buttons 1x WPS button/ 1x Reset to default button
LED Indicators Power/Single Good/Single Poor/WPS
Antenna 2x 3dBi 2.4G+3dBi 5G Dual band Omin Antenna
Power SupplyDC 3.35V/3A

Dimensions (L x W x H)74 x 50 x1.6mm
Support IPv4 / IPv6 / DHCP server/ LAN IP set / Firmware Upgrade/
Diagnostic / Ping Watchdog / System Log
Advanced Firmware Upgrade, Factory Defaults, Reboot

Certification FCC, CE, EAC
Environment
Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package:
1* E3
1* Quick Installation Guide (Multilingual)
