Starlight, 120dB true WDR, 3DNR
Max. 20fps@5MP
HD/SD output switchable
Audio in interface, built-in mic
2.7-13.5mm motorized lens
Max. IR length 80m, Smart IR
IP67, DC12V±30%

Image Sensor 1/2.8″ CMOS
Effective Pixels 2592(H)×1944(V), 5MP
Scanning System Progressive
Electronic Shutter Speed: PAL: 1/4s~1/100,000s; NTSC: 1/3s~1/100,000s
Minimum Illumination 0.005Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 80m (262feet)
IR On/Off Control Auto / Manual
IR LEDs 4

Lens Type Motorized lens / Fixed iris
Mount Type Board-in
Focal Length 2.7-13.5mm
Max Aperture F1.3
Angle of View H: 102°~29°
Focus Control Auto / Manual
Close Focus: 200mm, 7.87″

VIDEO:
Resolution 5MP (2592×1944)
Frame Rate 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P

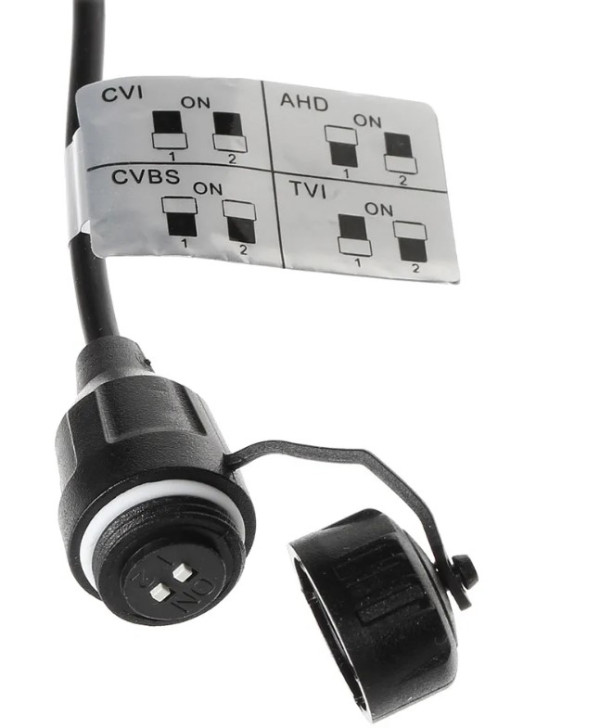

Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D

Casing Aluminium

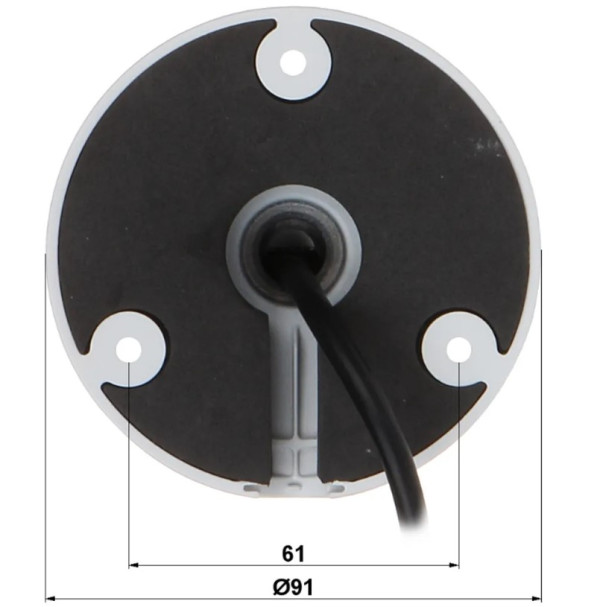

Dimensions 244.1mm×90.4mm×90.4mm (9.61″×3.56″×3.56″)
Net Weight 0.77kg (1.70lb)
Gross Weight 1.03kg (2.27lb)
