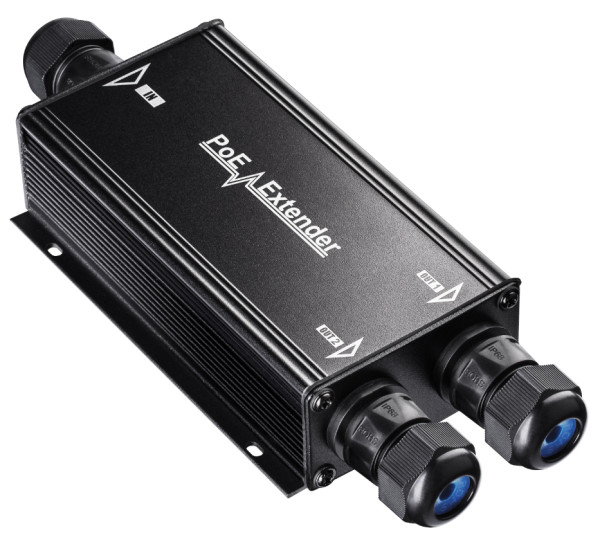

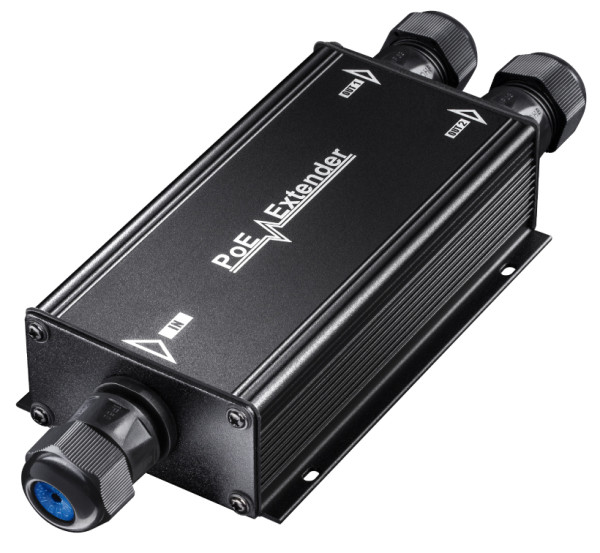

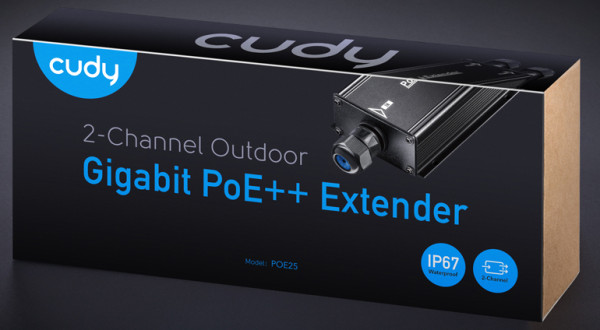

2-Channel Outdoor Gigabit PoE Extender, Model: POE25
Kompatibilan sa IEEE802.3af i IEEE802.3at,
Proširuje domet PoE i Ethernet-a za dodatnih 100 metara,
Nije potrebno dodatno napajanje,
Automatski otkriva i štiti PoE opremu od postojanja oštec´eni pogrešnom instalacijom,
Mreža pune brzine na celoj produženoj udaljenosti,
Kompaktna veličina, dizajn za montažu na zid,
Jednostavna plug-and-play instalacija,
EMI standardi su u skladu sa FCC, CE klasom B

Product Name: POE25
No. of channels: 1(PoE IN) into 2(PoE OUT)
Pass Through Data Rates: 10/100/1000 Mbps half/full duplex
Power over Ethernet input: Pin Assignment and Polarity: Both 1/2(-),3/6(+) and 4/5(+),7/8(-)
Power over Ethernet Output: Pin Assignment and Polarity :1/2(+),3/6(-), Output Power: up to 30W for 2 PSE

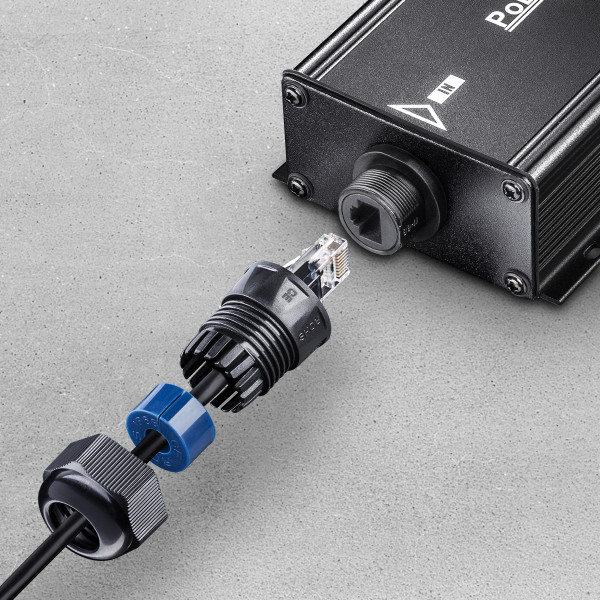

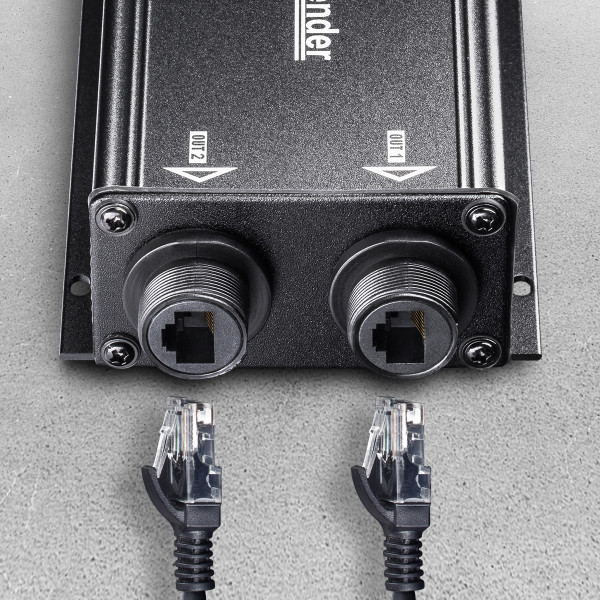

Connectors: Shielded RJ-45, EIA 568A and 568B

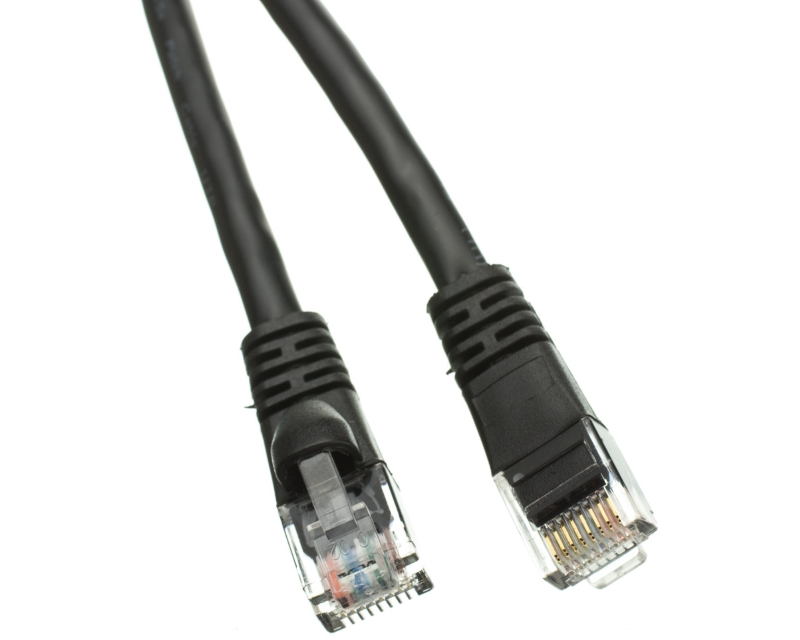

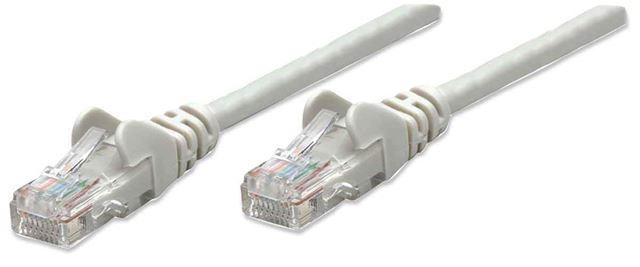

Network cables: Shielded category 5 (or higher)
Dimensions: 230mm x 90mm x 40mm

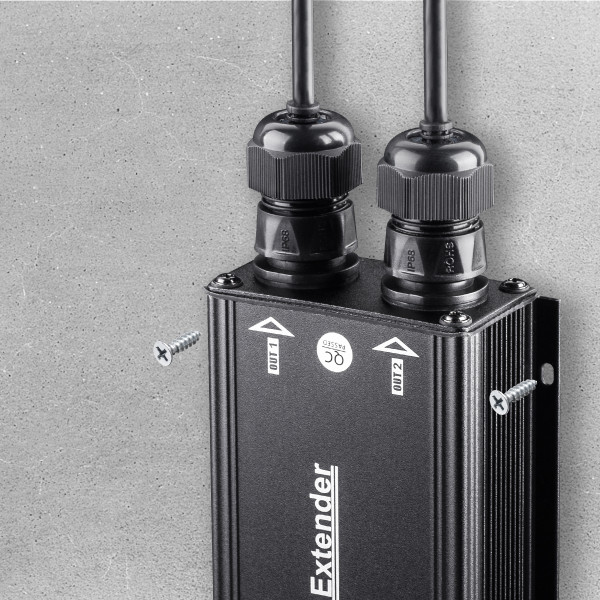

Mounting: Wall of shelf
Environment: Indoor or Outdoor
Environmental Conditions:
•Operating Ambient Temperature: Operating Ambient Temperatur e: -25: to 55 ?
•Operating Humidity: Complies with IP67(Support Outdoor rain prevention,need outdoor waterproof UTP cable)
•Storage Temperature:-40 to 70 C

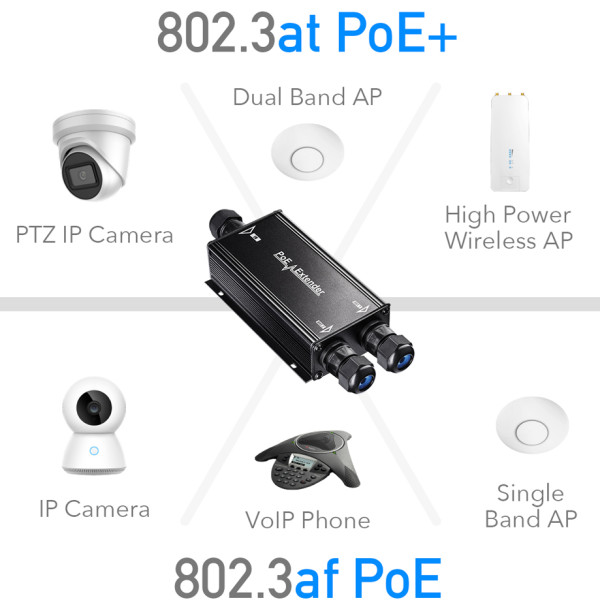

Regulatory Compliance: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE802.3at 4Pairs(60W)
